Promag MR2P - MIFARE® UID Reader

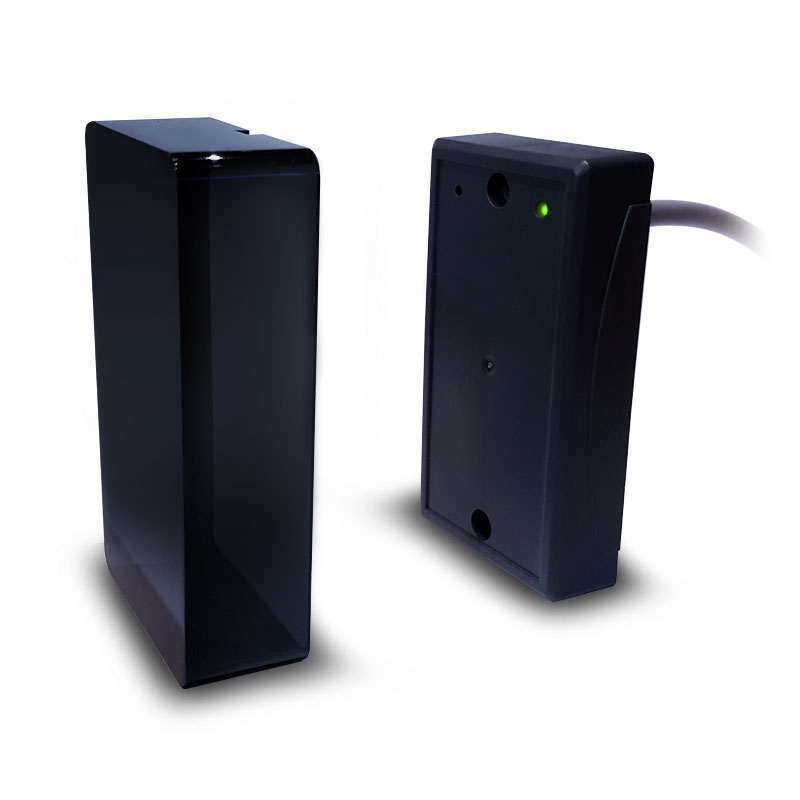

The MR2P has the same reliable 13.56MHz RFID reader as our MF7 on the inside but has a more attractive, modern gloss "Piano black" finish.

The MR2P is a very high performance RFID reader featuring medium range and small dimensions.

It is the best choice for system integrators because of its wide range of power inputs (between 5V to 18V DC). Even at 5 Volts (DC), the MR2P features a good reading range and comes with 3-in-1 interface (RS-232, MSR ABA TK2 and Wiegand) allowing it to integrate with a variety of applications, especially security/access control.

Features

• Reading distance: up to 50mm
• Frequency: 13.56 MHz
• Read MIFARE UltraLight® and MF1 Standard cards
• 3-in-1 interface (Wiegand, MSR ABA TK2 and RS232)
• Fast data transfer
• Weather resistant
• High data integrity
• Easy to install
• Available installed on metal surface

Specifications

• Interface:
  • Wiegand
  • MSR ABA Track2
  • RS232
  • Or special customized specifications.
• Typical Maximum reading distance:Up to 50mm at 5~12V with MIFARE card In ideal conditions.
• Electrical: 5~18 Volts regulated DC at 200 mA typical. A linear regulator is recommended.
• Frequency: 13.56MHz standard
• Transponder: Read Only (for Unique Serial Number / Unique Identifier)
• Read MIFARE standard cards for 1024/4096 byte and MIFARE UltraLight cards of EEPROM size 512bit for ISO 14443A
• External control Audio / Visual Indication: Internal LED and Buzzer
• Dimensions: 82 (L) x 47 (W)x 20(H) mm
• Housing material: ABS
• Environmental:
  • Operating temperature Range: -10 to 60 Deg C.
  • Operating relative Humidity: 10 ~ 90%.

Applications

• Access control
• Security system
• ID card for admission control
• Personal Identification

Ordering Information

MR2-20 - Traditional Black Housing
MR2P-20 - Piano Black Housing (MOQ 100)

Note: The Specification is subject to change without notice.
